Electric Lifting Magnet with Overhead Track

Check with seller
Published date: 28/12/2023
Modified date: 05/06/2025
  • Location: Weilburg, Hesse, Germany
Electric Lifting Magnet with Overhead Track
Electric Lifting Magnet with Overhead Track Electric Lifting Magnet with Overhead Track Electric Lifting Magnet with Overhead Track Electric Lifting Magnet with Overhead Track Electric Lifting Magnet with Overhead Track Electric Lifting Magnet with Overhead Track Electric Lifting Magnet with Overhead Track

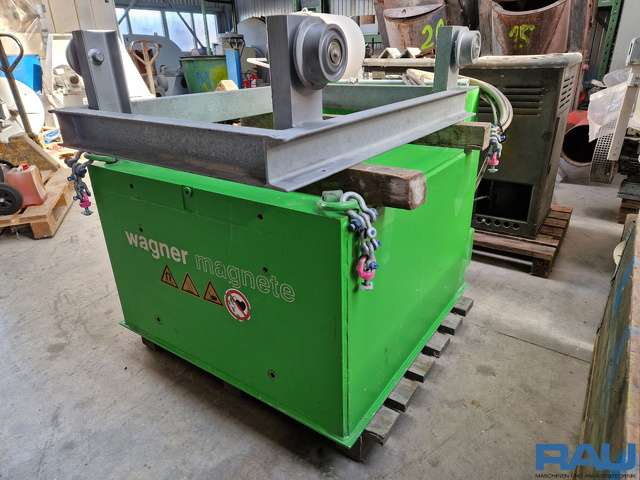

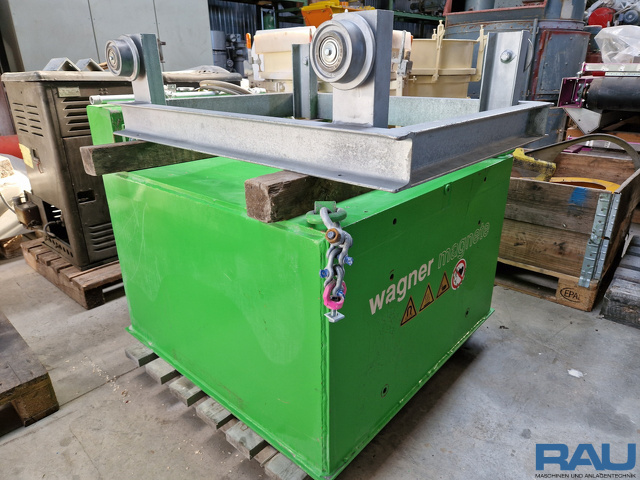

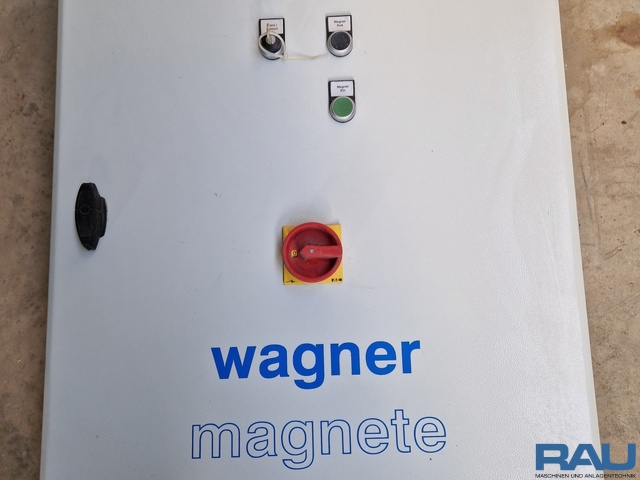

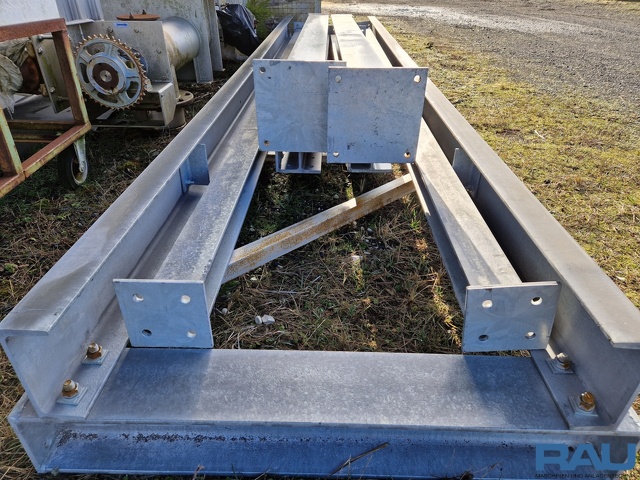

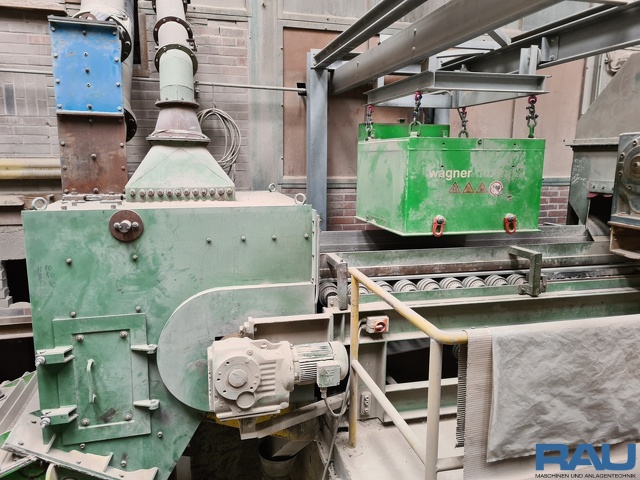

Electro magnet with large depth action for extracting ferrous parts from a material stream, oil cooled. Including control cabinet with 220 V DC-supply (type: 312-220/20, for 400 V / 50-60 Hz connection) and overhead duo-rail track (ca. 4,5 m long x 2,5 m high) for moving magnet. By switching off magnet above drop point attracted ferrous parts will be removed.

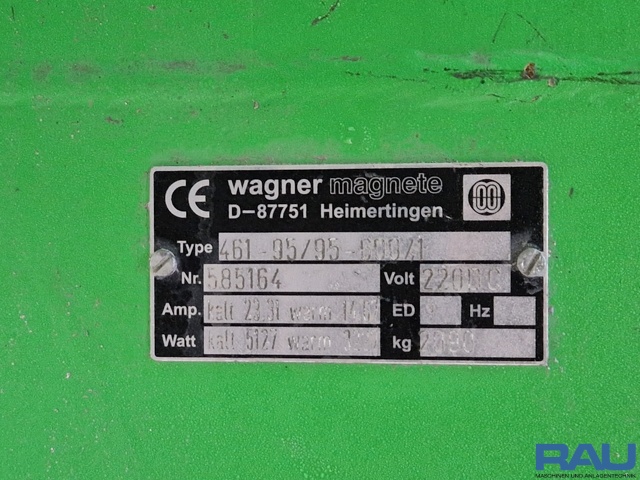

Hersteller: Wagner
Type: 461-95/96-600/1
Abmessungen: ca. 0,95 m x 0,95 m x 0,6 m
Gewicht: 2.090 kg (Magnet)
Anschlußwert: 5,5 kW
Baujahr: 2017
Maschinennummer: RAID 1338
