Angle Bucket Elevator

Check with seller
Published date: 06/06/2025
  • Location: Stadt Auswählen, Germany

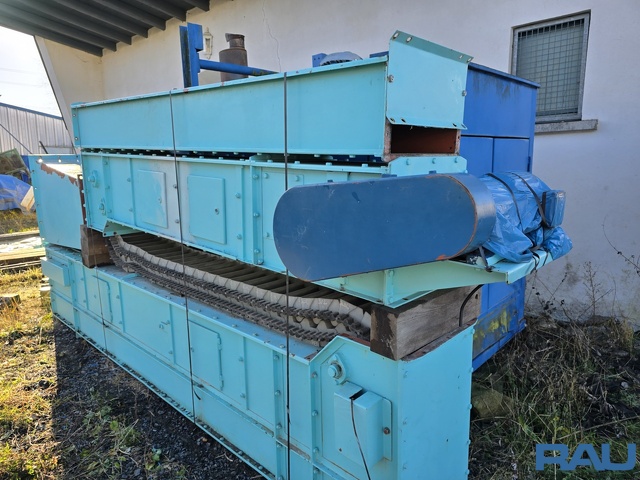

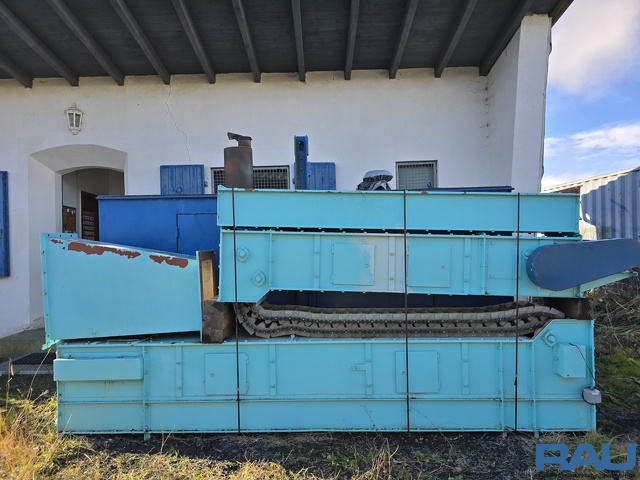

Angle Bucket Elevator
Angle Bucket Elevator Angle Bucket Elevator Angle Bucket Elevator Angle Bucket Elevator Angle Bucket Elevator

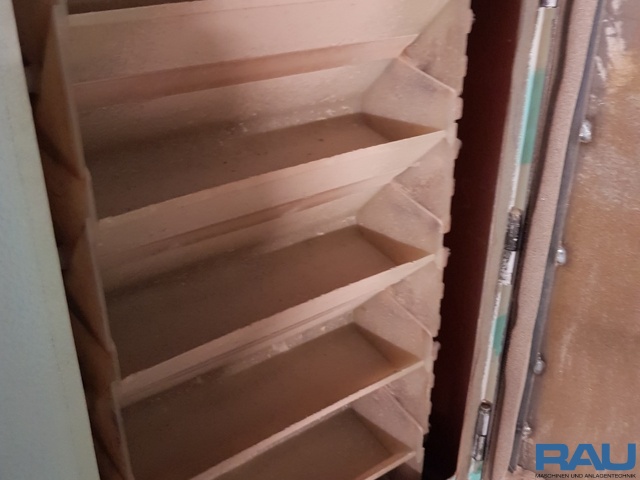

Angle bucket elevator with a bucket size of 0.5 l. per bucket, driven by gear drive 1.5 kW, conveying capacity: +/- 10 m³/h (depending on material, manufacturer's specs), horizontal conveying path (center inlet to center outlet): approx. 5.3 m, inlet height: approx. 0.7 m, discharge height: approx. 3.2 m. Rubber belts were not cut during disassembly.
Hersteller: Wiese
Type: SEB 05
Maschinennummer: RAID 1345
